BMW R nineT CNC Triple Tree Kit – 55mm USD Forks

BMW R nineT CNC Triple Tree Kit

The MessnerMoto BMW R nineT CNC Triple Tree Kit is a complete upper and lower triple-clamp system designed around the original 55 mm BMW R nineT USD forks. Developed for custom R nineT builds, café racers and performance-oriented motorcycles, the kit replaces the original triple trees with a precision CNC-machined system while retaining the original fork configuration.

Both triple trees are machined from 6061-T6 billet aluminum and designed together as a complete front-end assembly. For builders planning a different front suspension setup, the triple tree kit can also be custom-made for other USD fork configurations. Contact us with your fork specifications before ordering.

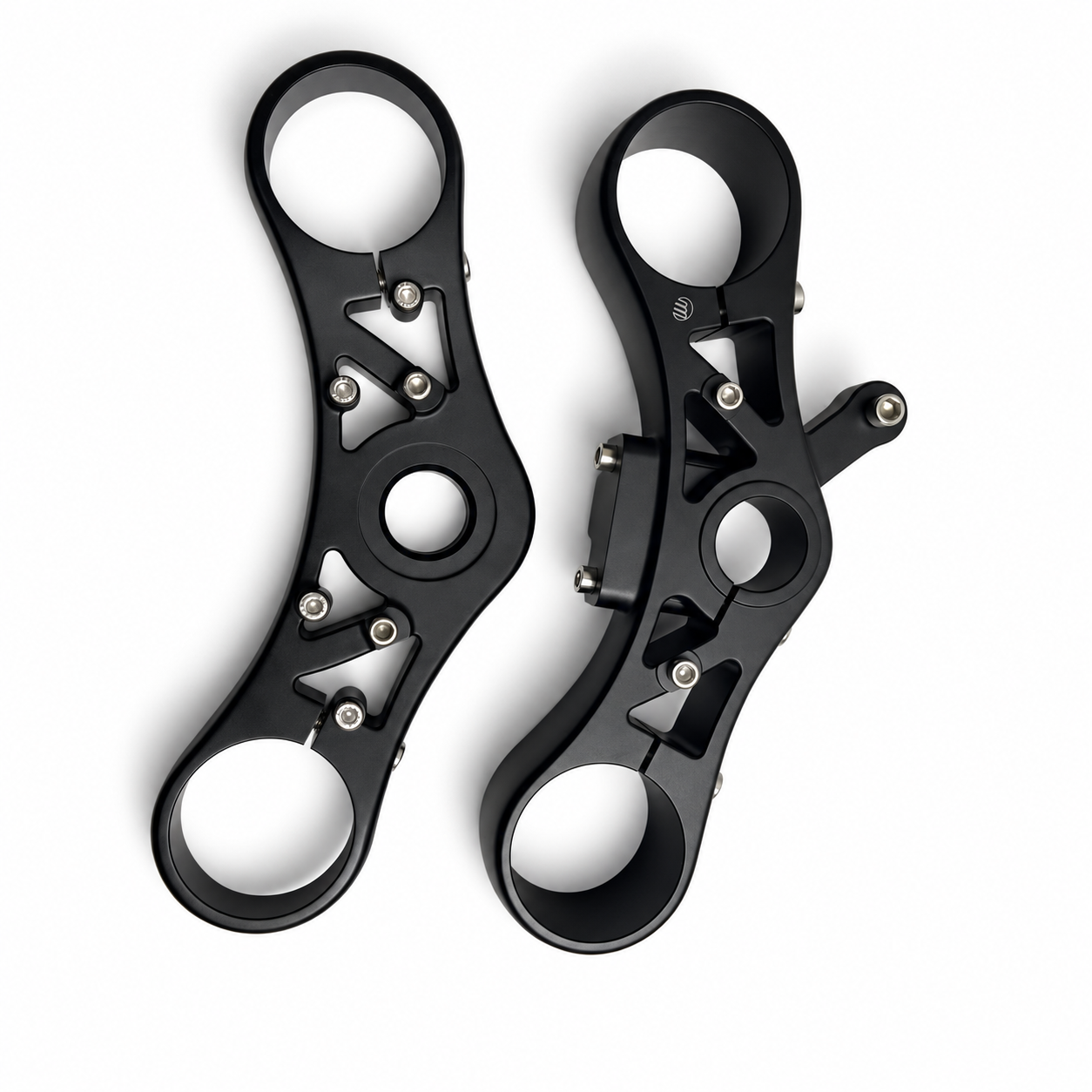

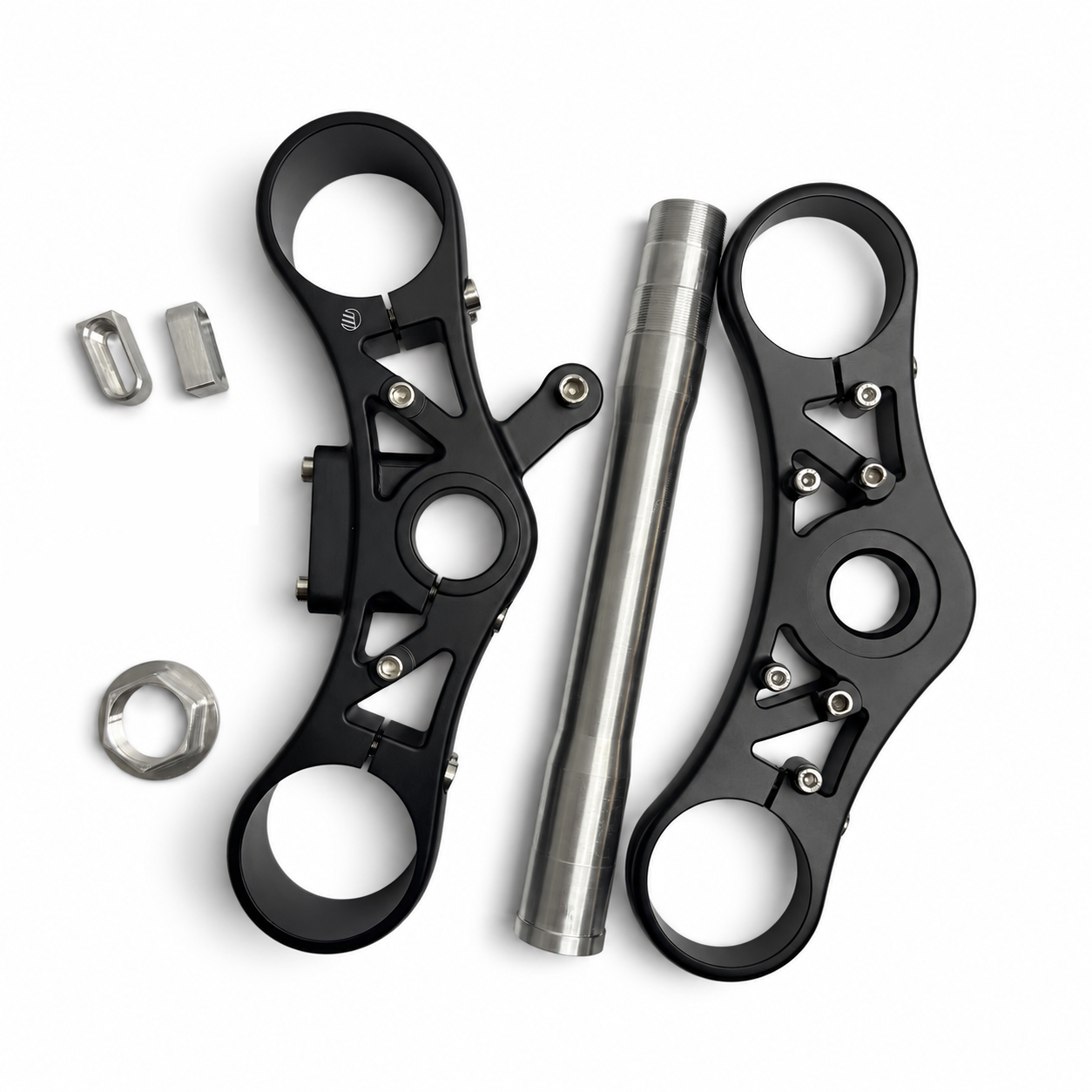

Included in the Kit

• CNC-machined upper triple tree
• CNC-machined lower triple tree
• Steering stem
• Aluminum top nut
• Adjustable steering stops
• Required triple-tree hardware

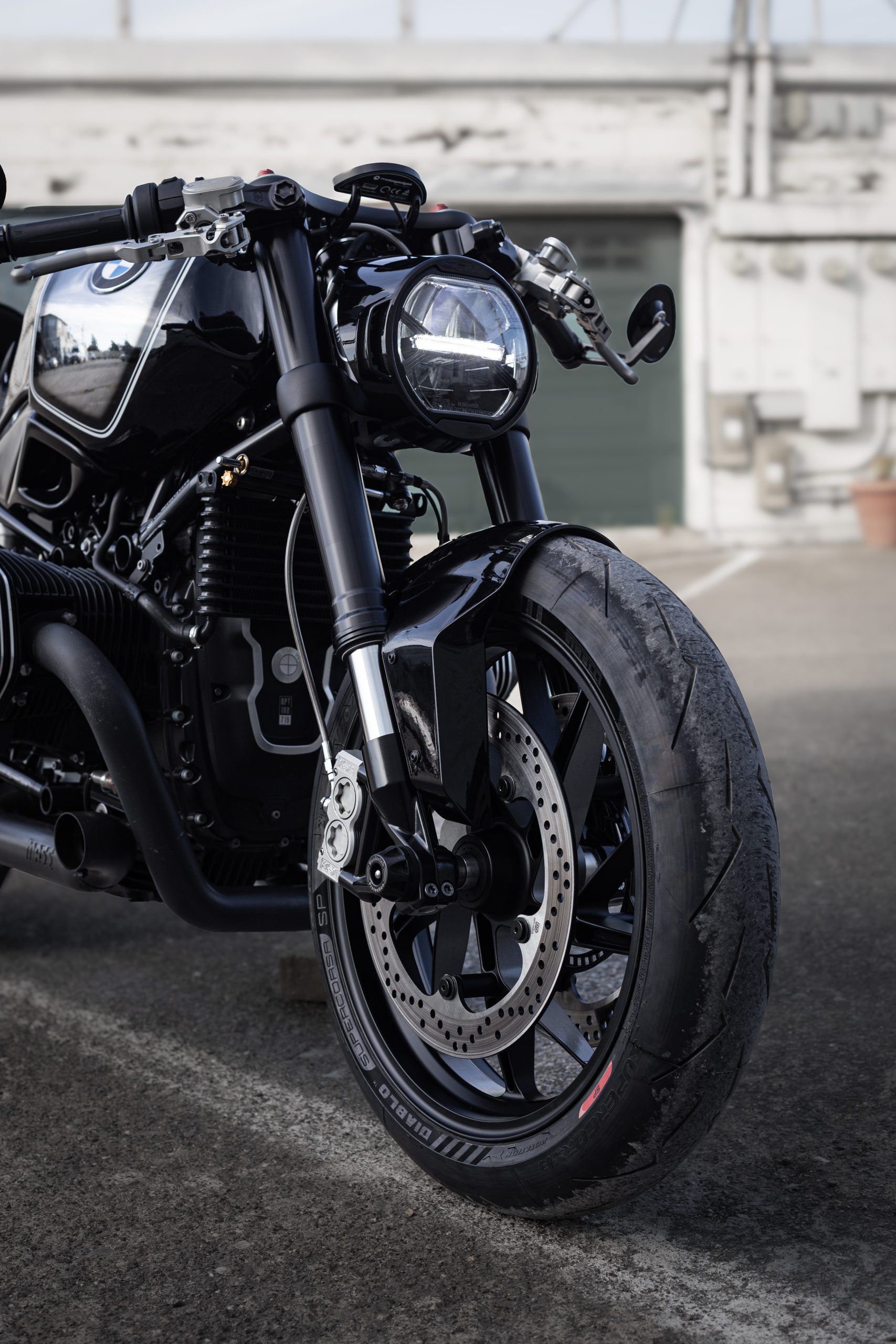

Designed for Original 55mm BMW R nineT Forks

The standard configuration is designed specifically around the original BMW R nineT 55 mm USD forks. This allows you to retain the original fork assembly while replacing the OEM upper and lower triple trees with a complete CNC-machined setup. For builders who want to keep the original R nineT suspension while creating a cleaner and more purpose-built front end, there is no need to source a completely different fork assembly.

The standard kit is designed around the original R nineT fork configuration, making it particularly suitable for café racer, custom and performance-oriented R nineT builds.

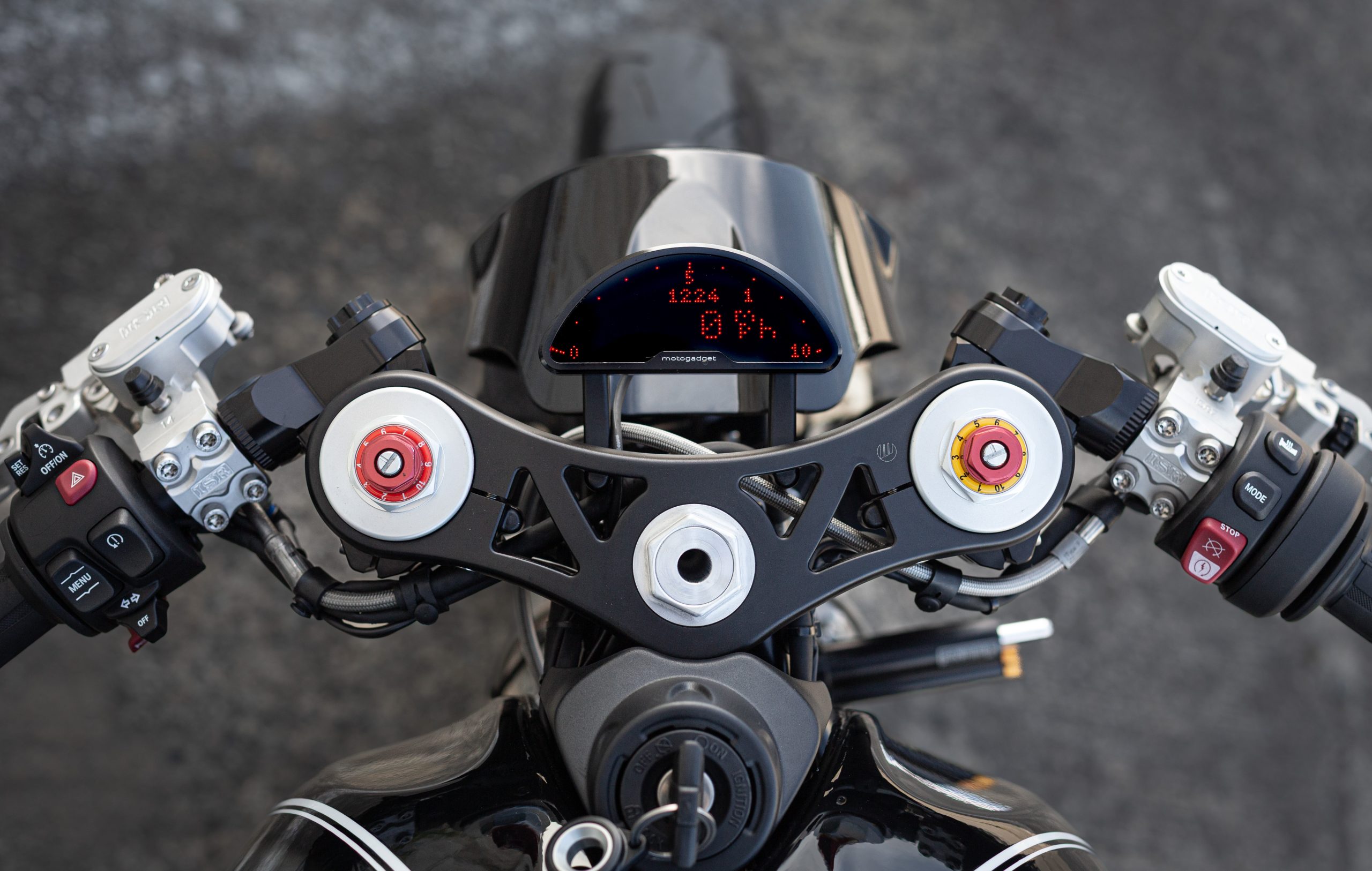

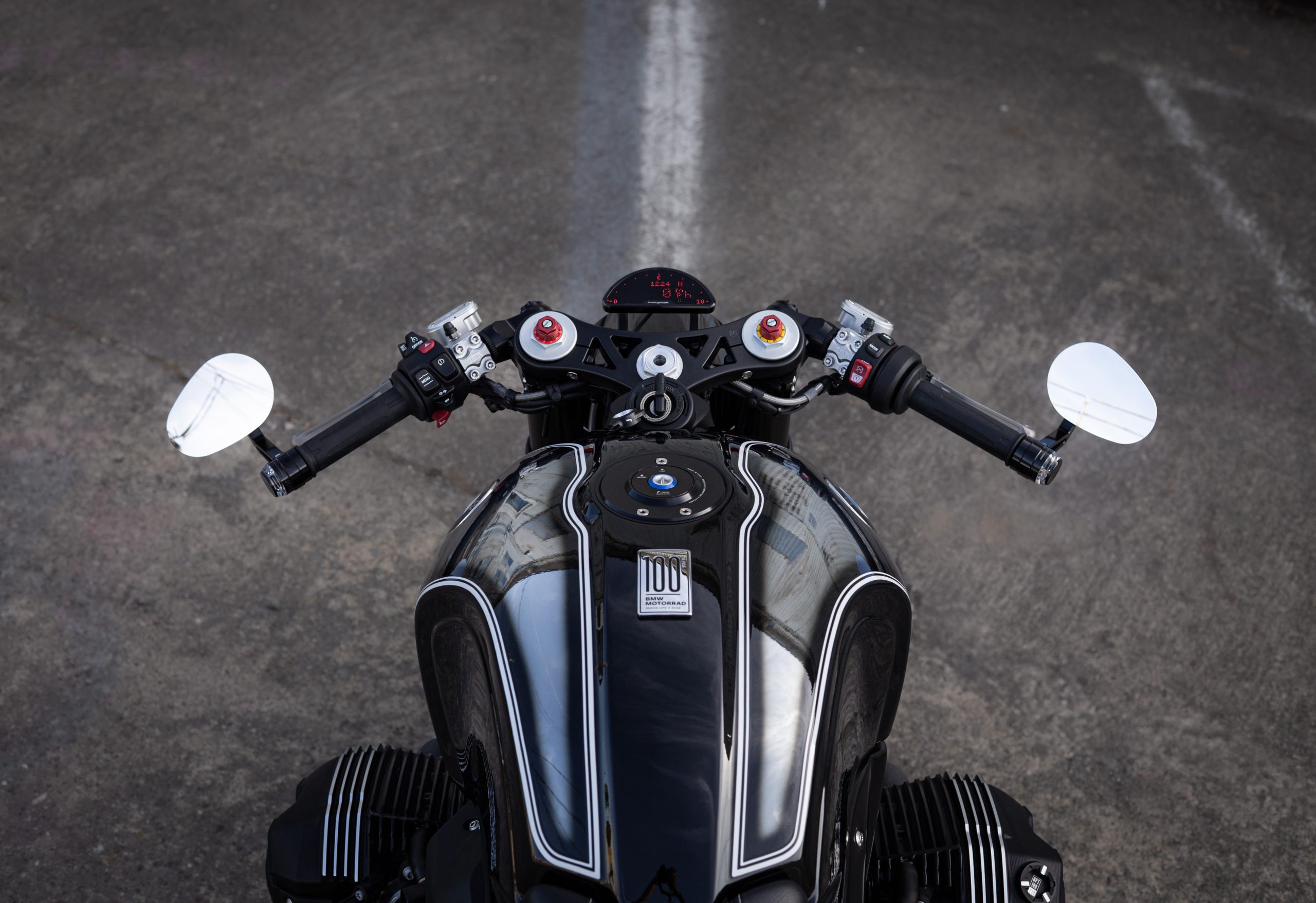

Optional Motogadget Motoscope Pro Integration

Many custom BMW R nineT builds replace the original instrument cluster with the Motogadget Motoscope Pro. For this reason, the MessnerMoto triple tree kit can be configured with a dedicated CNC-machined Motoscope Pro mounting solution, allowing the gauge to become an integrated part of the cockpit rather than relying on a separate universal bracket.

Combined with the triple tree and 55 mm clip-ons, the Motoscope Pro can form part of a clean, compact R nineT cockpit with the major components designed to work visually together.

OEM Gauge or Motoscope Pro

Depending on your build, the triple tree can be configured around either the original BMW instrument setup or a custom Motoscope Pro cockpit.

Gauge Mounting Options

• Original BMW gauge mounting
• Motogadget Motoscope Pro mounting
• No gauge mounting

Choose the configuration that best suits your R nineT project.

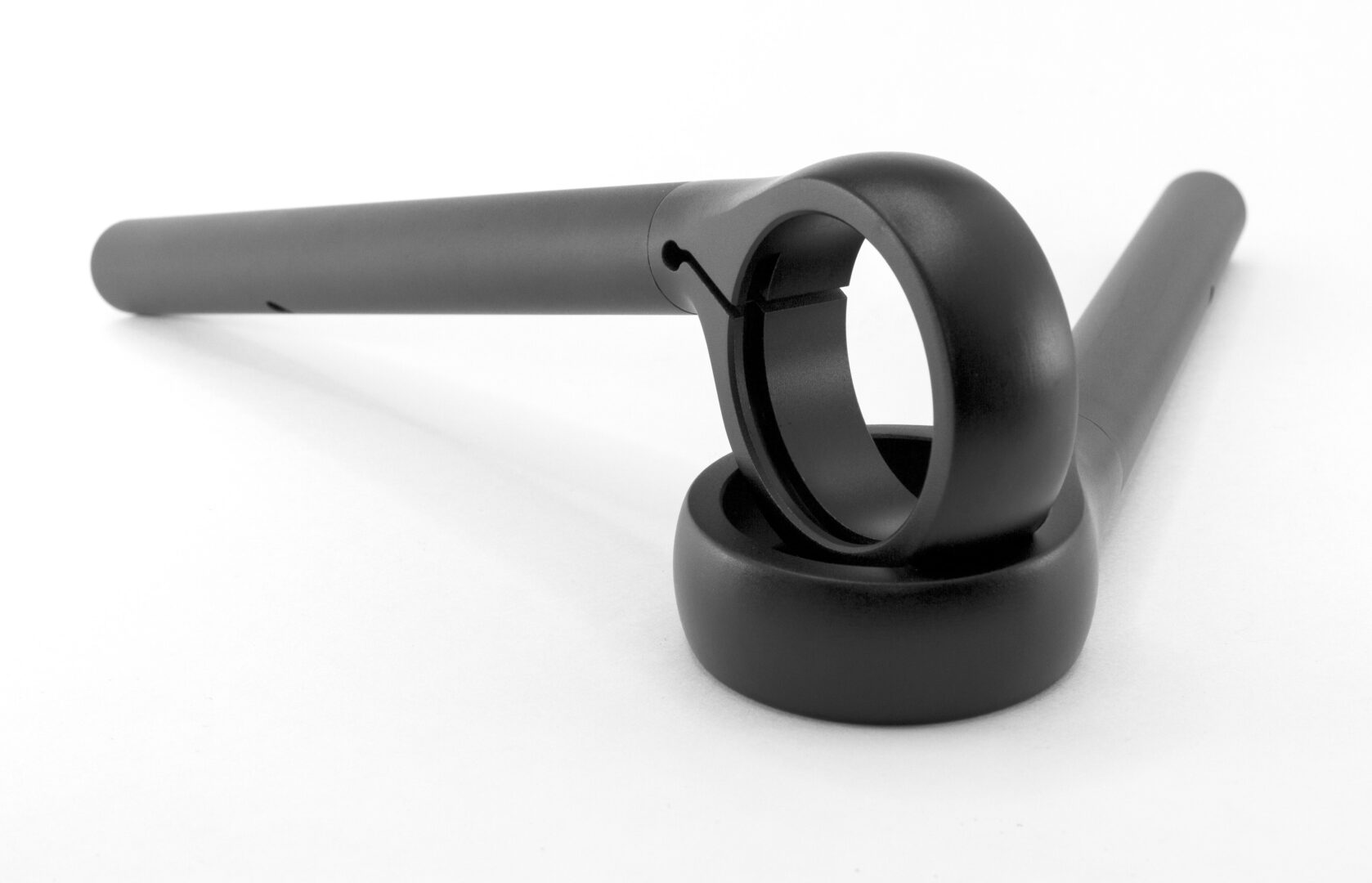

Designed for 55mm Clip-On Handlebars

The standard triple tree configuration is a perfect match for 55 mm clip-on handlebars, creating a lower and cleaner cockpit compared with the original handlebar arrangement. Pair the kit with MessnerMoto 55 mm CNC Clip-Ons for a coordinated front-end setup with matching materials, machining and finish.

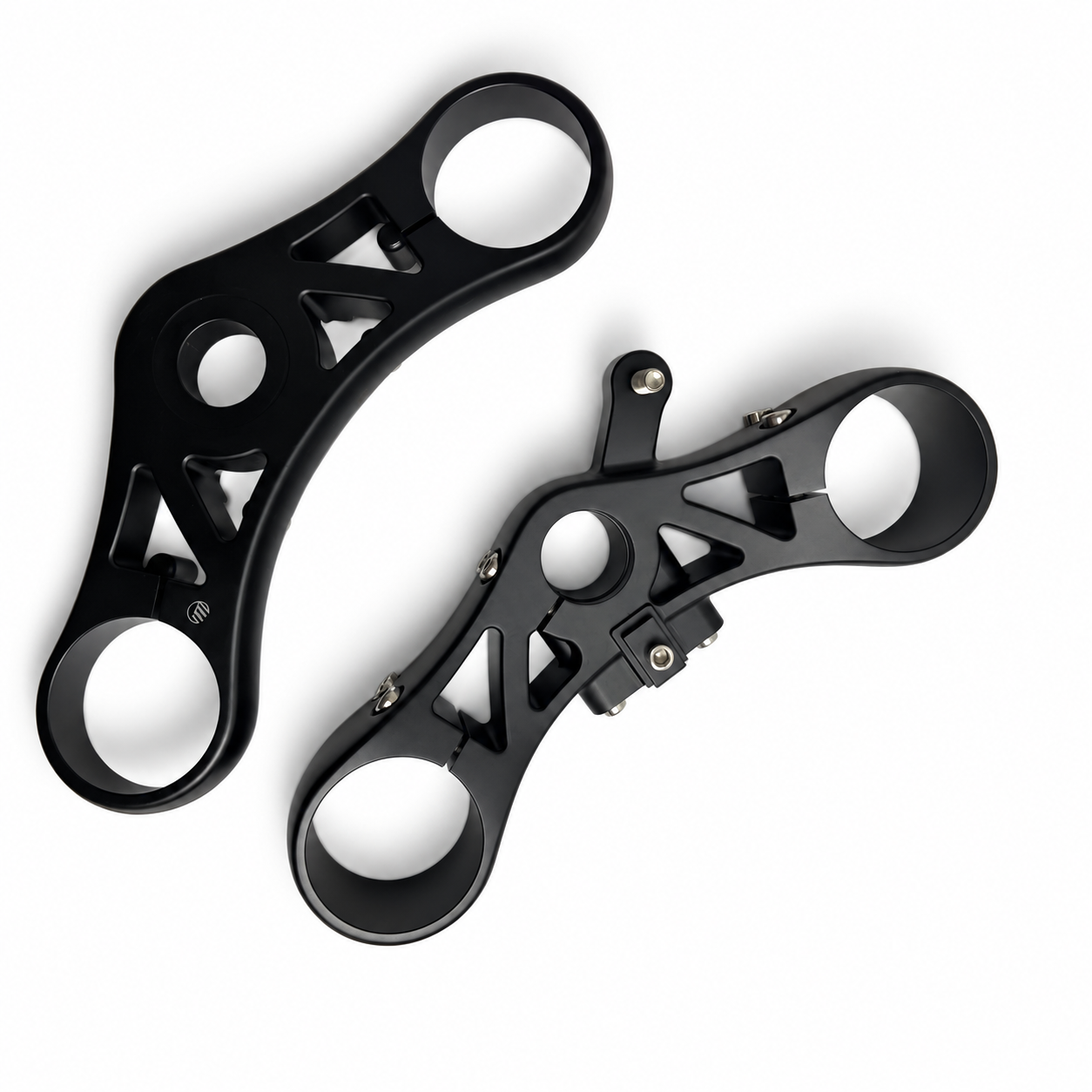

CNC-Machined 6061-T6 Aluminum

The upper and lower triple trees are precision CNC-machined from 6061-T6 billet aluminum. After machining, the components are finished to create the clean satin appearance characteristic of MessnerMoto CNC components.

Available Finishes

• Hard Anodized Black
• Silver Anodized

The result is a complete front-end system with consistent materials, machining and finish across both triple trees.

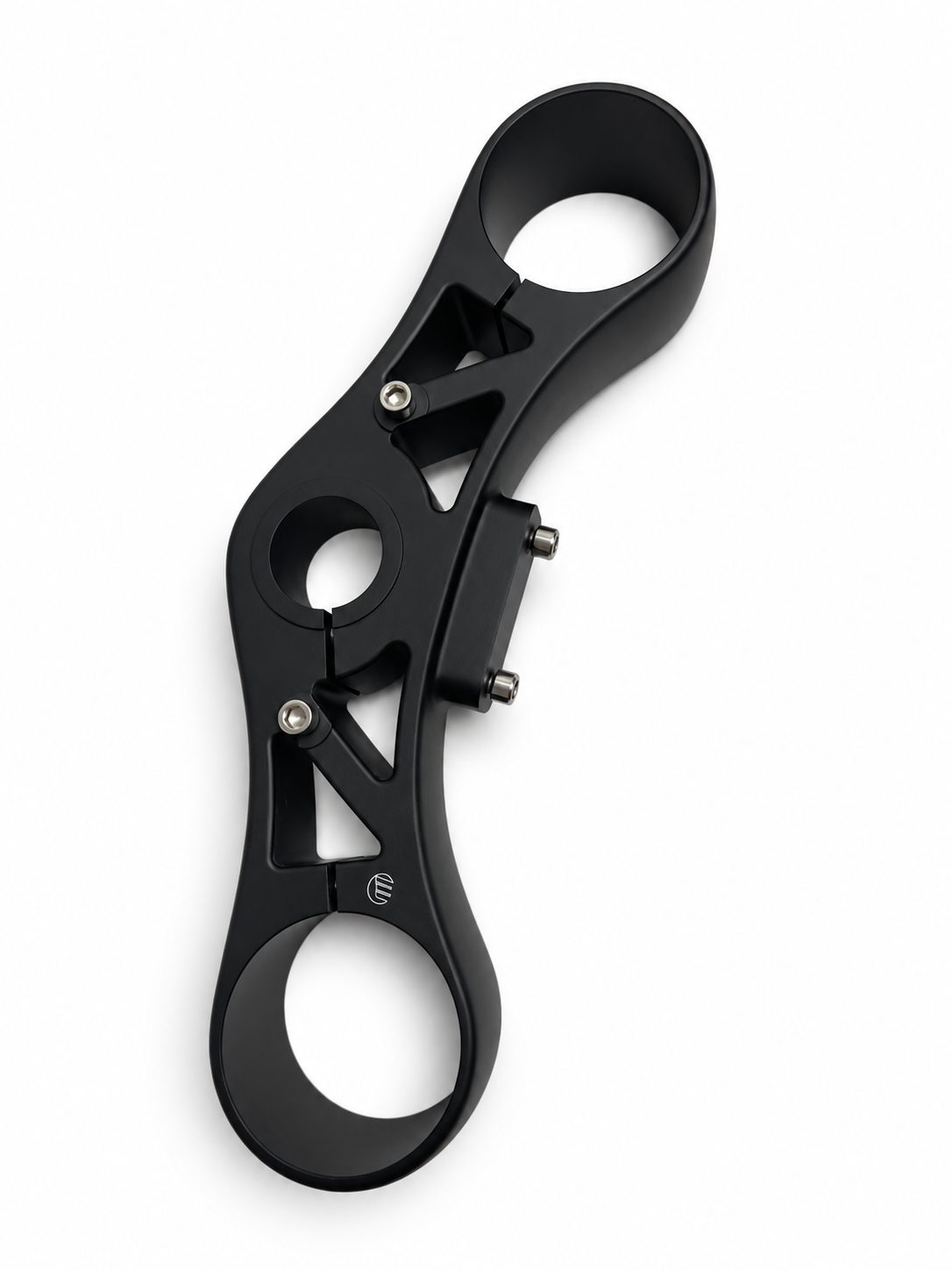

Adjustable Steering Stops

The lower triple tree incorporates adjustable steering stops, allowing the steering limit to be configured around the motorcycle and cockpit setup. This is particularly useful on custom R nineT builds where clip-ons, controls or other cockpit components can change the available steering clearance.

Custom USD Fork Configurations

Planning a different R nineT front end? The triple tree kit can also be custom-made for other USD fork configurations.

Contact us with your fork specifications before ordering and we can discuss the requirements for your project.

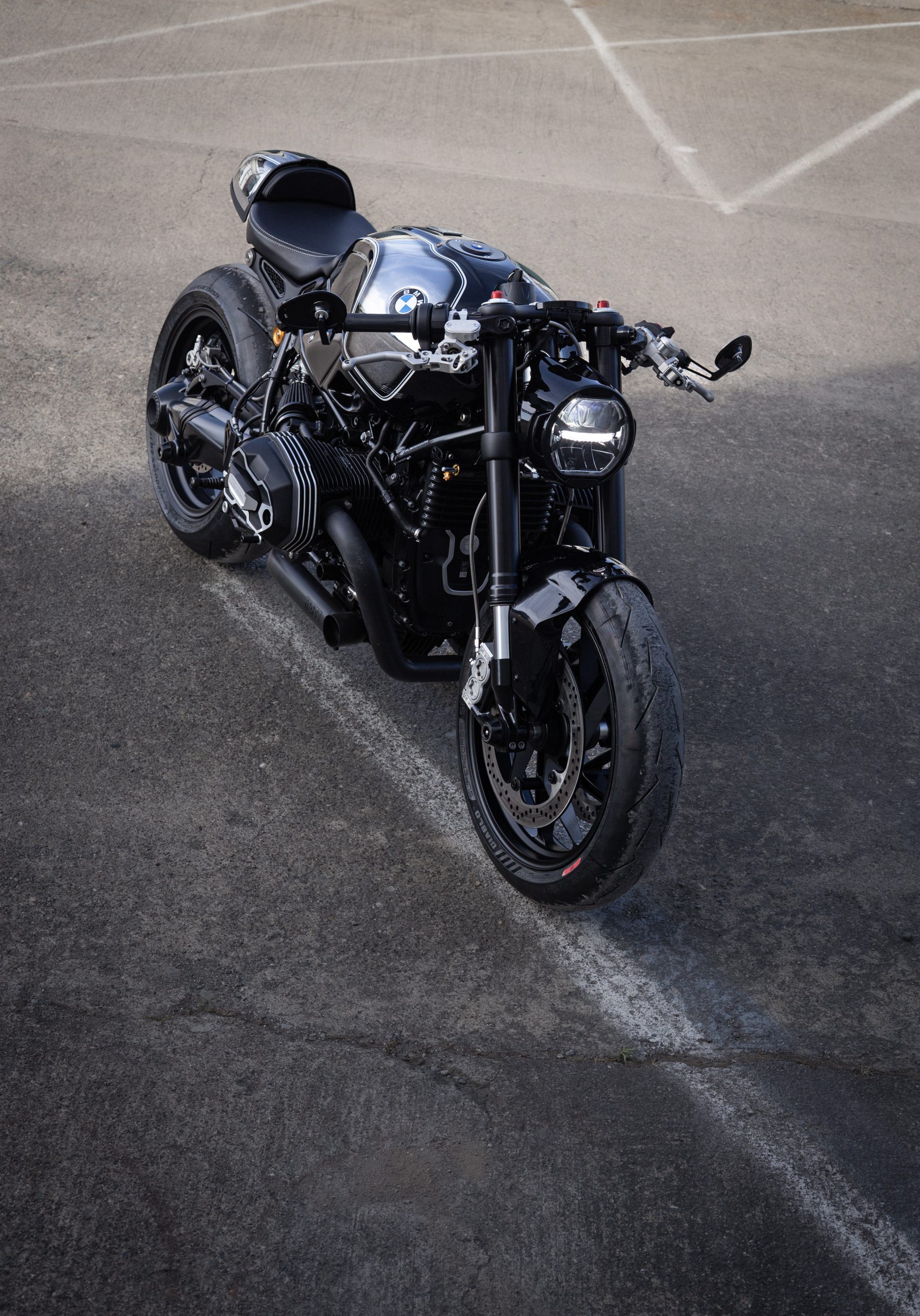

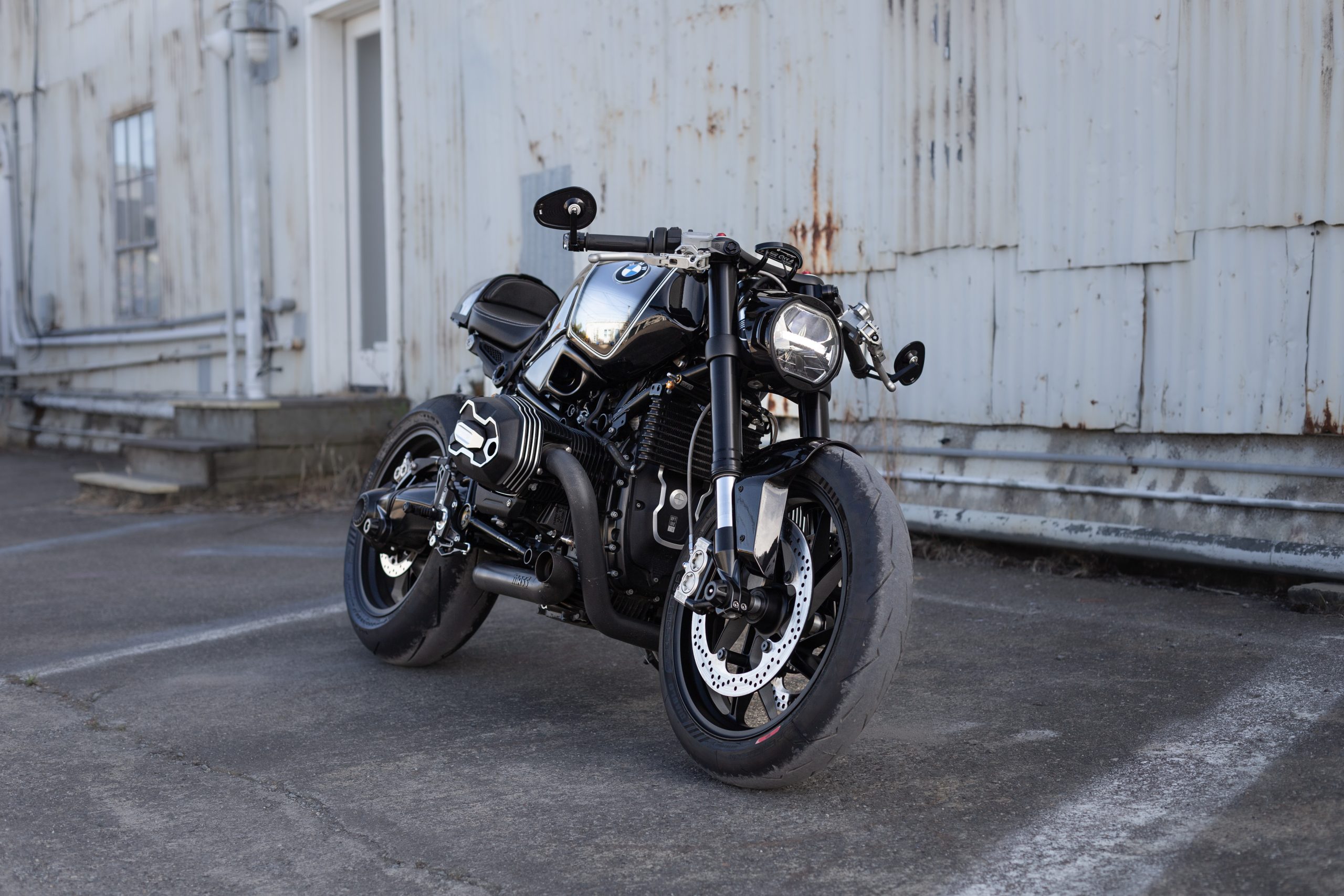

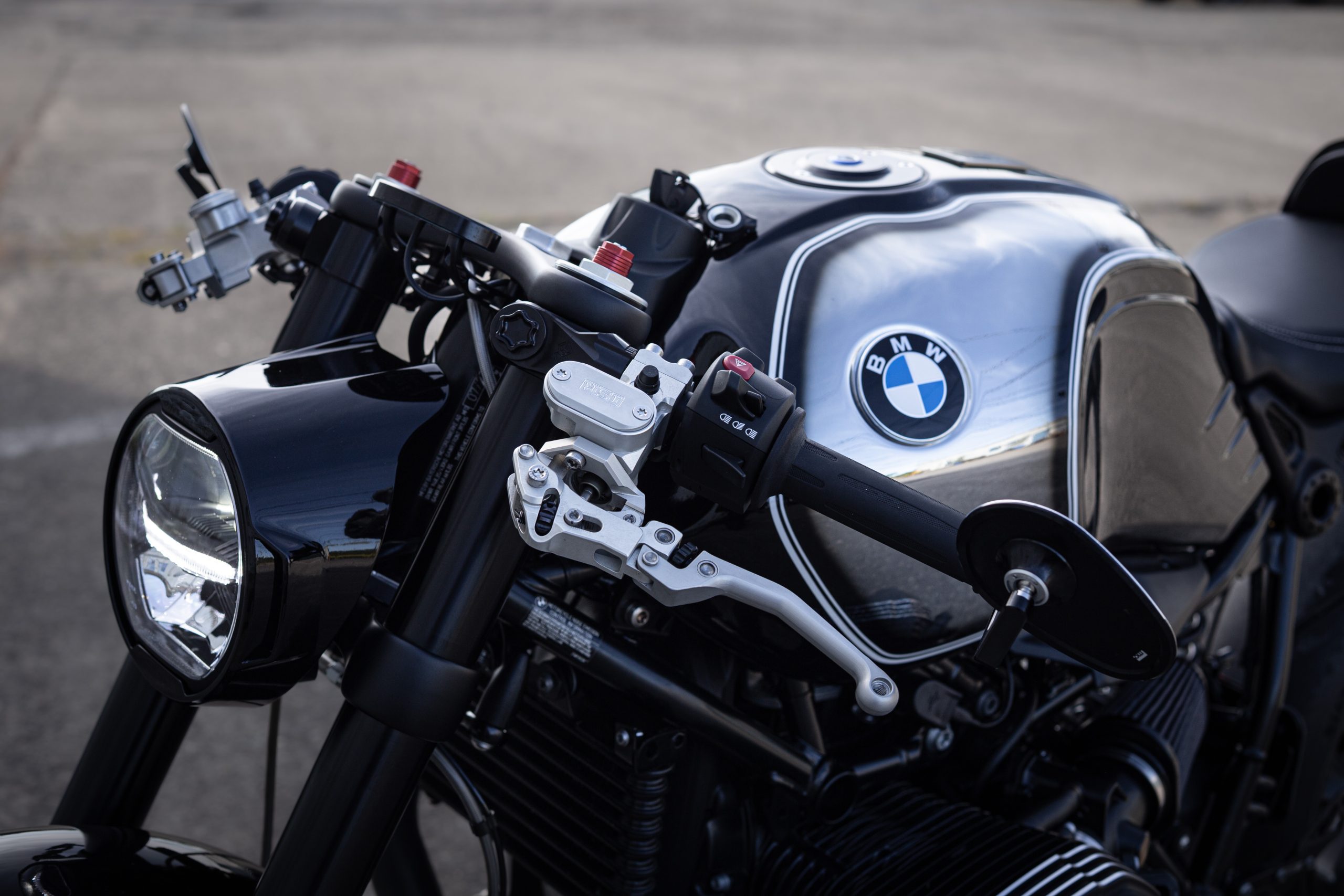

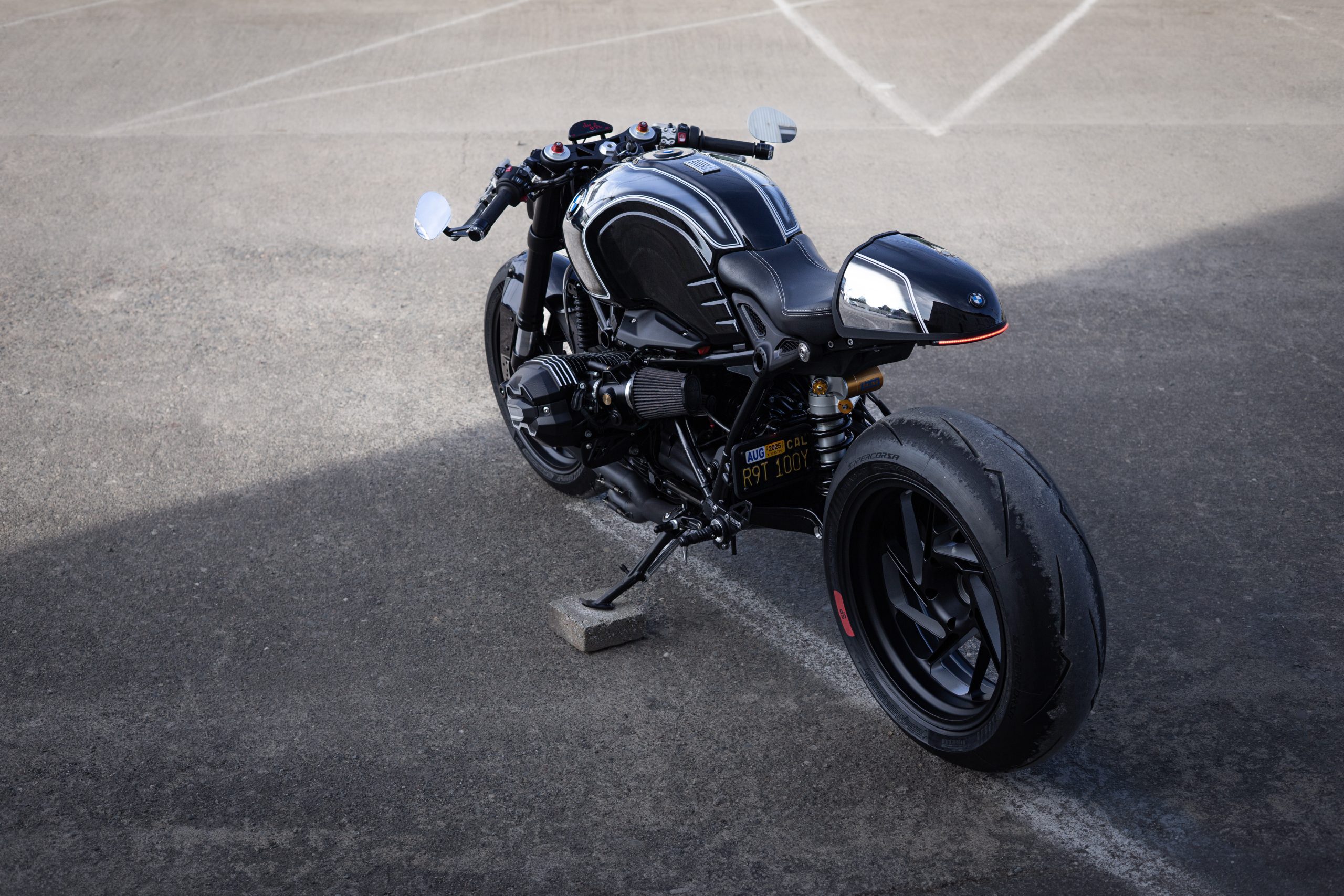

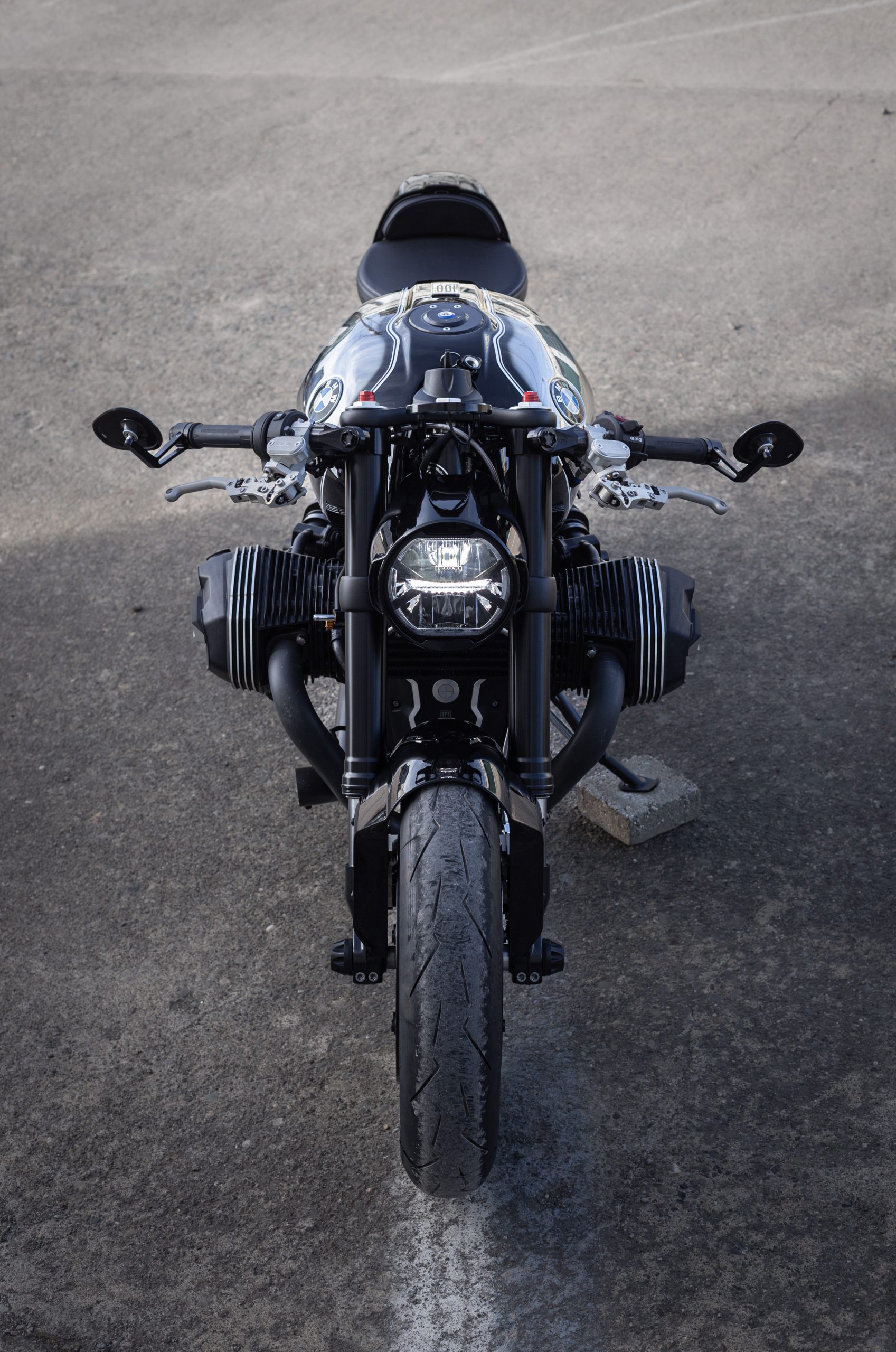

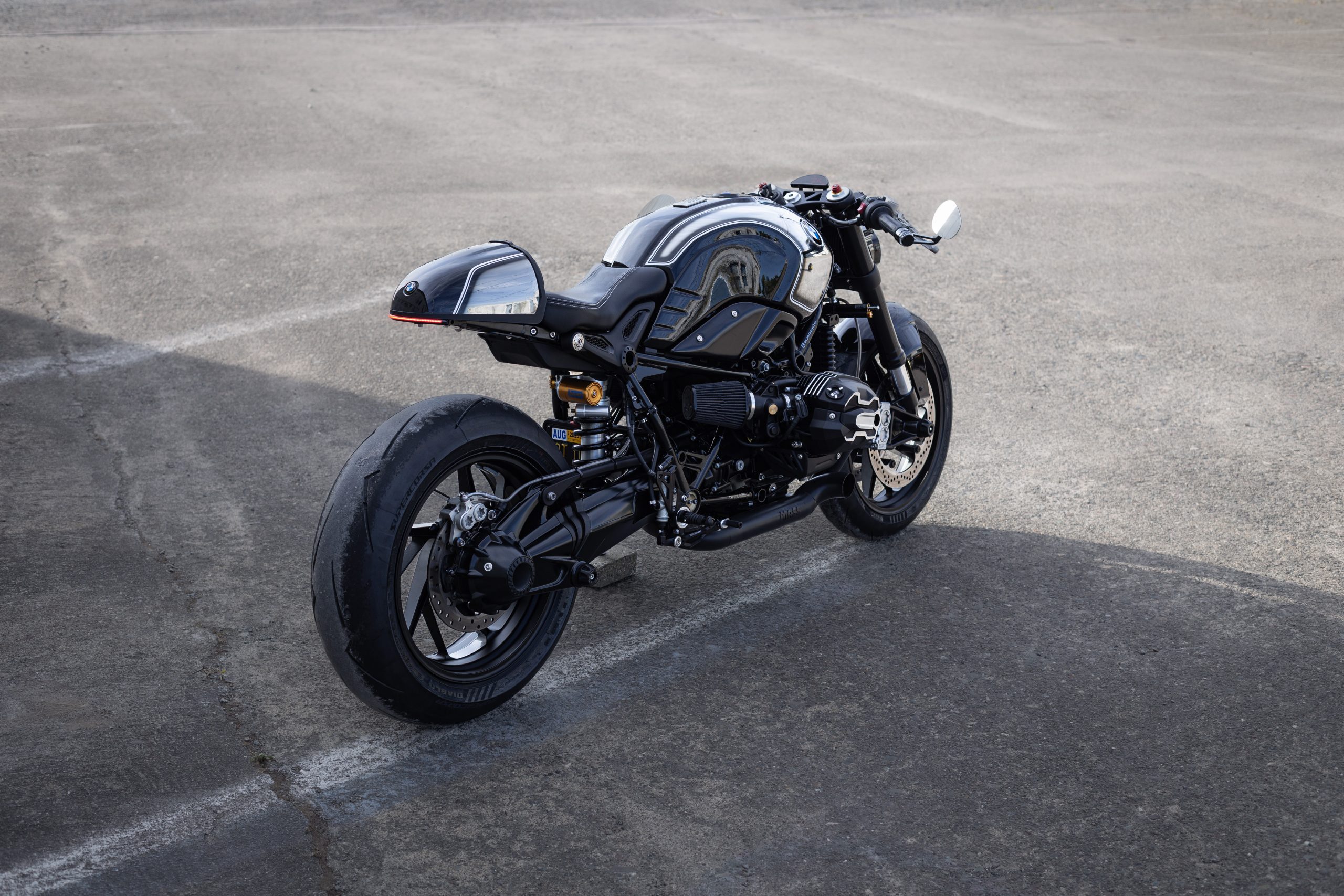

Built for Custom BMW R nineT Projects

The BMW R nineT is already equipped with a capable USD front end, but the original triple-tree and cockpit arrangement is not always suited to the clean, minimal layout required for a custom build.

The MessnerMoto complete triple tree system provides a foundation for creating a more integrated front end around the original 55 mm forks.

Combined with 55 mm clip-ons, Motoscope Pro mounting and other MessnerMoto cockpit components, the result is a coordinated system rather than a collection of separate universal parts.

Ideal for:

• BMW R nineT café racer builds
• Minimalist R nineT customs
• Performance-oriented builds
• Restomods
• Custom motorcycles using clip-on handlebars

Specifications

• Motorcycle: BMW R nineT
• Standard Fork Configuration: Original BMW R nineT USD forks
• Upper Fork Clamp Diameter: 55 mm
• Fork Type: USD / inverted
• Upper Triple Tree: Included
• Lower Triple Tree: Included
• Steering Stem: Included
• Top Nut: Included
• Steering Stops: Adjustable
• Material: 6061-T6 billet aluminum
• Manufacturing: CNC machined
• Gauge Mounting: OEM BMW / Motogadget Motoscope Pro / No Gauge Mount
• Custom Fork Configuration: Available on request
• Finish: Hard anodized black or silver anodized
• Designed & Manufactured by: MessnerMoto

Complete Your BMW R nineT Front End

Combine the triple tree kit with other MessnerMoto components to build a complete R nineT cockpit:

• MessnerMoto 55 mm CNC Clip-Ons
• MessnerMoto Motoscope Pro CNC Bracket
• MessnerMoto LED Handlebar Switches
• MessnerMoto CNC Bar End Mirrors
• MessnerMoto CNC Motorcycle Throttle
• MessnerMoto Radial Master Cylinders

The goal is a complete front end where the triple trees, handlebars, controls and instrument mounting work together as one visual and functional system

Weight	0.6 kg
