Honda CB750 USD Fork Conversion Triple Tree Kit

Bring modern front suspension to a classic Honda with the MessnerMoto Honda CB750 USD Fork Conversion Kit.

Designed for Honda CB750 K and F models, this CNC triple tree kit allows you to install modern USD forks while maintaining a clean, purpose-built front end.

Unlike conversion kits designed around one specific donor motorcycle, the MessnerMoto system is configured around the USD forks you choose to use. This gives you the freedom to select the suspension, brakes, wheels and other front-end components that best suit your Honda CB750 café racer, restomod or custom build.

Honda CB750 K & F Compatibility

The conversion kit is designed for classic Honda CB750 K and CB750 F models.

Each kit combines a custom Honda steering stem with CNC-machined upper and lower triple trees configured around the forks selected for your project.

This creates a complete conversion system rather than adapting an unrelated OEM triple tree to the Honda frame.

Built Around Your Choice of USD Forks

You are not restricted to one particular donor front end.

The triple trees can be configured for a wide range of modern USD forks, allowing you to choose the suspension setup that works best for your build.

Popular options include:

• Suzuki GSX-R USD forks
• Honda CBR USD forks
• Yamaha R1 / R6 USD forks
• Kawasaki ZX-series USD forks
• Ducati USD forks
• Triumph USD forks
• Showa USD forks
• Öhlins USD forks

Other USD fork configurations can also be accommodated.

After ordering, we confirm the required information about your forks before manufacturing the kit.

Complete CNC Triple Tree Conversion Kit

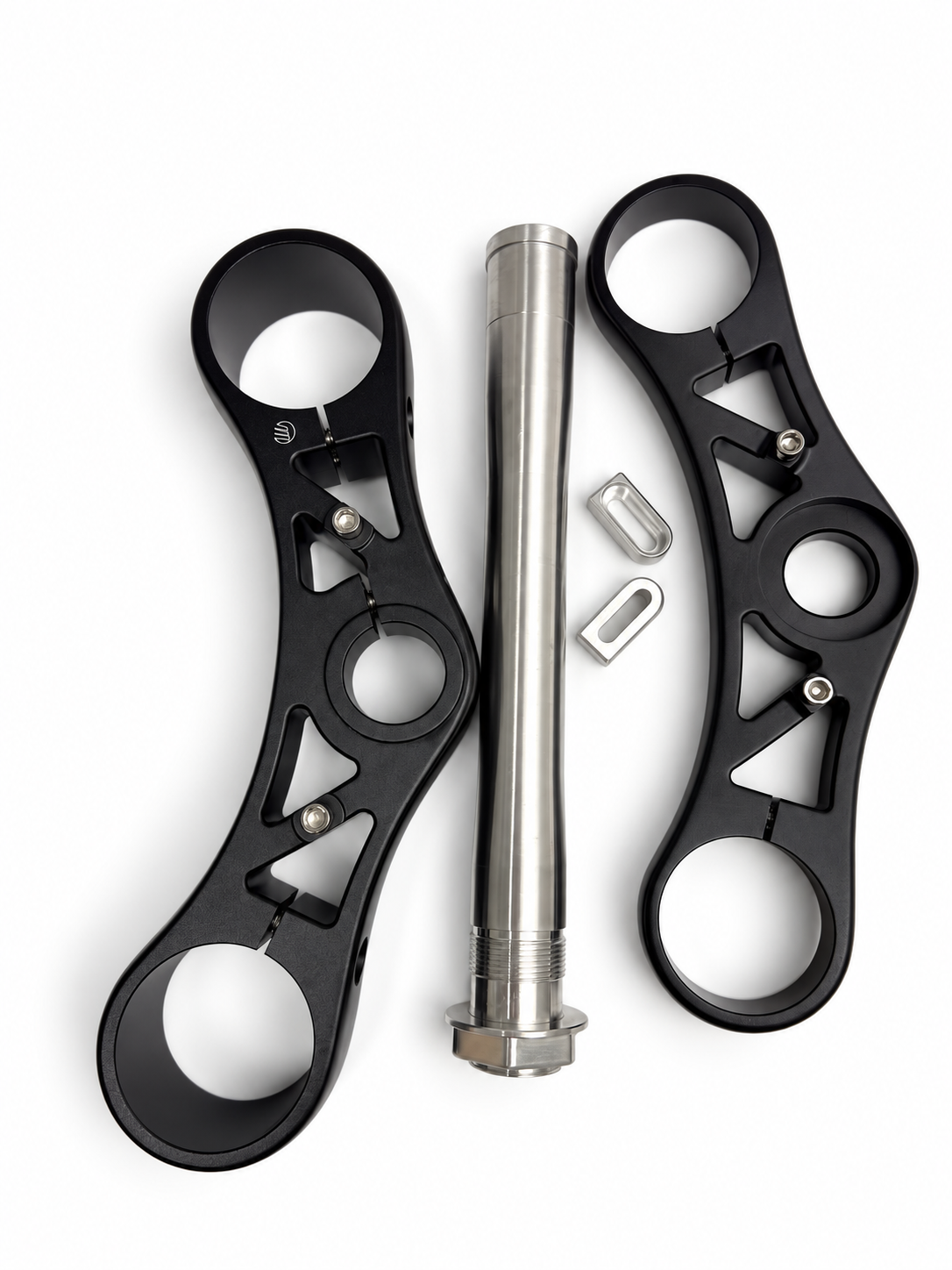

The Honda CB750 USD fork conversion kit includes:

• CNC-machined upper triple tree
• CNC-machined lower triple tree
• Custom Honda conversion stem
• CNC aluminum top nut
• Adjustable steering stops

These components are designed together as a complete front-end conversion system. The same core components are included with the current CB750 conversion kit.

Multiple Triple Tree Offset Options

Different front-end combinations can require different triple tree geometry, which is why the kit is available with multiple offset options:

30 mm / 35 mm / 40 mm / 45 mm / 50 mm / 55 mm / 60 mm

The current kit uses 40 mm as the general recommended offset, while other options allow the setup to be adapted to the requirements of an individual build.

Fork length, wheel and tire dimensions, ride height and the complete motorcycle geometry should be considered when selecting an offset.

If you are unsure which configuration is suitable for your project, contact us before ordering.

CNC-Machined 6061-T6 Aluminum

The upper and lower triple trees are precision CNC-machined from 6061-T6 aluminum.

After machining, the components are polished and fine-sandblasted to achieve a clean satin surface before anodizing. The current kit is available in both Hard Anodized Black and Silver Anodized finishes.

The result is a clean, minimalist front end designed to complement classic Honda CB750 café racers, restomods and performance-focused custom motorcycles.

Custom Honda CB750 Conversion Stem

At the center of the conversion is a custom steering stem made for the Honda CB750 frame.

Rather than trying to make the steering stem from the donor motorcycle work with the Honda chassis, the conversion kit combines a purpose-made stem with triple trees manufactured for your selected USD forks.

This allows the classic Honda chassis and modern front suspension to work together as one conversion system.

Adjustable Steering Stops

The lower triple tree incorporates adjustable steering stops.

This is especially useful on custom motorcycles where the fuel tank, clip-ons, controls and other front-end components may differ significantly from the original Honda configuration.

Modern USD Suspension for the Classic CB750

The Honda CB750 is an excellent platform for combining classic motorcycle design with modern suspension and braking components.

A USD fork conversion gives builders considerably more freedom when designing the complete front end—from forks and brakes to wheels, clip-ons and controls.

The MessnerMoto conversion kit provides the foundation for bringing those components together while maintaining a clean, purpose-built appearance.

Whether you’re building a minimalist CB750 café racer, a modern restomod or a more performance-oriented custom motorcycle, the triple tree can be configured around the front end you want to use.

Build a Complete Honda CB750 Front End

The conversion kit can be combined with other MessnerMoto CNC components to create a complete cockpit and front-end setup, including:

• CNC clip-on handlebars
• CNC motorcycle mirrors
• CNC LED handlebar switches
• CNC motorcycle throttle
• Radial brake and clutch master cylinders
• Headlight mounting components

Fork diameter determines which fork-mounted components are compatible, so these parts should be selected according to your particular USD fork setup.

Ordering Your Custom Fork Configuration

Because the triple trees are configured around your selected USD forks, we need to know which front end you intend to use.

After ordering, we will confirm the necessary specifications before production.

Depending on the conversion, we may require:

• Fork manufacturer
• Donor motorcycle
• Model
• Model year
• Upper fork diameter
• Lower fork diameter
• Selected triple tree offset
• Any special requirements for your build

This allows us to configure the triple trees specifically for your Honda CB750 and selected USD fork combination.

If you’re planning an unusual front-end conversion, contact us we can make it!.
