BMW Airhead USD Fork Conversion Kit

Bring modern front suspension to a classic BMW with the MessnerMoto BMW Airhead USD Fork Conversion Kit.

Designed for BMW R-series motorcycles, this CNC triple tree kit allows you to install modern USD forks while maintaining a clean, purpose-built front end.

Unlike conversion kits designed around one specific donor motorcycle, the MessnerMoto system is configured around the USD forks you choose to use. This gives you far more freedom when selecting suspension, brakes, wheels and other components for your BMW café racer, restomod or custom build.

BMW Airhead Compatibility

The conversion kit is available for classic BMW R-series motorcycles including:

• BMW R60
• BMW R65
• BMW R75
• BMW R80
• BMW R90
• BMW R100
• BMW RS and RT variants

Each conversion is configured around the motorcycle and front-end combination selected for the build.

Built Around Your Choice of USD Forks

You are not restricted to one particular donor front end.

The triple trees can be configured for a wide range of modern USD forks, giving you the freedom to choose a front suspension setup that suits your project.

Popular options include:

• Suzuki GSX-R USD forks
• Honda CBR USD forks
• Yamaha R1 USD forks
• Yamaha R6 USD forks
• Kawasaki ZX USD forks
• BMW S1000RR USD forks
• BMW R nineT USD forks
• Showa USD forks
• Öhlins USD forks

Other USD fork configurations can also be accommodated.

After ordering, we confirm the relevant information about your donor forks so the triple trees can be produced for your specific front-end configuration.

This makes the kit suitable for everything from relatively straightforward BMW Airhead USD fork conversions to highly individual custom motorcycle projects.

Complete CNC Triple Tree Kit

The BMW Airhead USD fork conversion kit includes the essential triple-tree components required to adapt the modern front end to the classic BMW chassis.

Included in the kit:

• CNC-machined upper triple tree
• CNC-machined lower triple tree
• Custom BMW conversion stem
• Aluminum top nut
• Adjustable steering stops

The components are designed together as a complete conversion system rather than as individual universal parts.

Multiple Triple Tree Offset Options

Front-end geometry is an important part of any fork conversion. For this reason, the MessnerMoto BMW Airhead triple trees are available with several offset options:

30 mm / 35 mm / 40 mm / 45 mm / 50 mm / 55 mm / 60 mm

This allows the triple tree configuration to be better matched to different forks, wheels and custom motorcycle setups.

40 mm is our general-purpose choice for many conversions, but the appropriate offset depends on the complete motorcycle setup.

Fork length, wheel and tire dimensions, ride height and other geometry changes should all be considered when planning a custom front end.

CNC-Machined 6061-T6 Aluminum

The upper and lower triple trees are precision CNC-machined from 6061-T6 aluminum.

After machining, the components are finished to create the clean, technical appearance characteristic of MessnerMoto parts.

Two finishes are available:

• Hard Anodized Black
• Silver Anodized

The minimalist design works particularly well on BMW café racers and restomods where the front end is visually exposed and every component becomes part of the overall motorcycle design.

Modern Suspension for a Classic BMW

A USD fork conversion can completely change the front end of a classic BMW.

Modern forks give builders access to a much wider range of suspension and brake configurations while creating the aggressive, compact front-end proportions commonly seen on contemporary café racers and performance-oriented custom motorcycles.

The MessnerMoto conversion kit provides the connection between those modern components and the classic BMW chassis.

Whether you’re building an understated R80 restomod or a heavily modified BMW R100 café racer, the system gives you the flexibility to build the front end around the components you actually want to use.

Keep Your Original BMW Snowflake Wheel

Want modern USD forks while retaining the unmistakable appearance of the original BMW Snowflake front wheel?

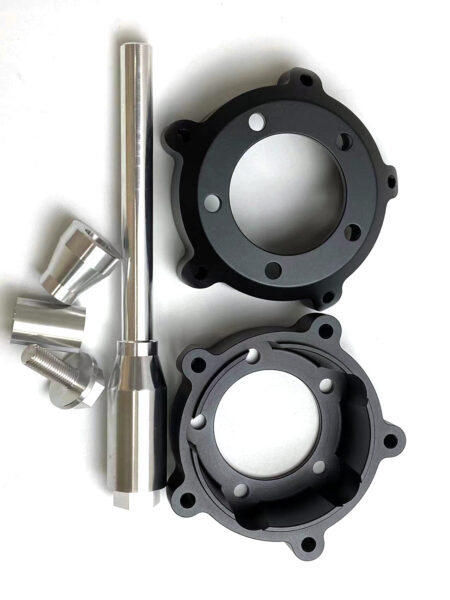

MessnerMoto also produces a dedicated BMW Wheel to USD Fork Adapter Kit for BMW R-series and K-series Snowflake wheels.

The wheel conversion system can be configured around your USD fork setup and allows the classic BMW wheel to become part of a modern front-end conversion.

Build a Complete BMW USD Front End

The triple tree kit can be combined with other MessnerMoto components to create a more complete custom front-end setup.

Depending on your build, compatible components can include:

• BMW Snowflake wheel to USD fork adapter kit
• Universal USD fork front fender
• CNC clip-on handlebars
• CNC motorcycle mirrors
• CNC LED handlebar switches
• CNC motorcycle throttle
• Radial brake and clutch master cylinders

This also gives you a good place to add product cards or WooCommerce related-product links rather than relying only on text links.

Ordering Your Custom Fork Configuration

Your USD Fork Information

Because this kit is configured around your chosen front end, we need to know which USD forks you intend to use.

After your order is placed, we will confirm the necessary fork information before production.

Depending on the conversion, this may include the:

• Fork manufacturer
• Donor motorcycle
• Model
• Model year
• Fork dimensions
• Selected triple tree offset

This allows us to configure the triple trees for your particular BMW and USD fork combination.

If you’re planning an unusual front-end conversion, contact us before ordering to discuss the setup.

Weight	1.9 kg
